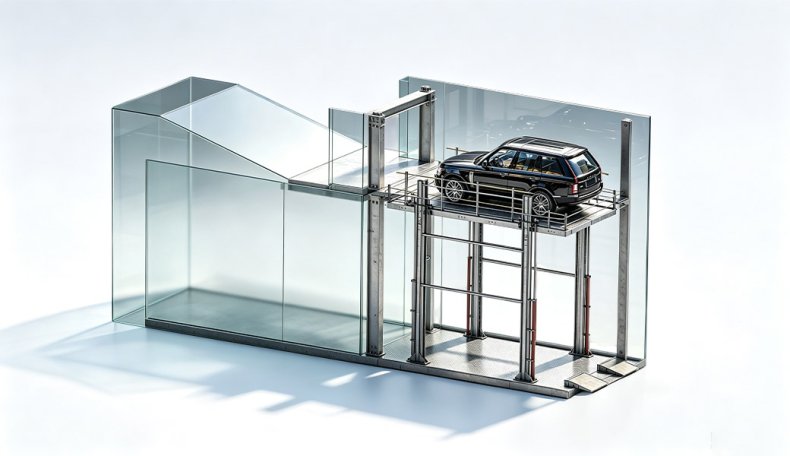

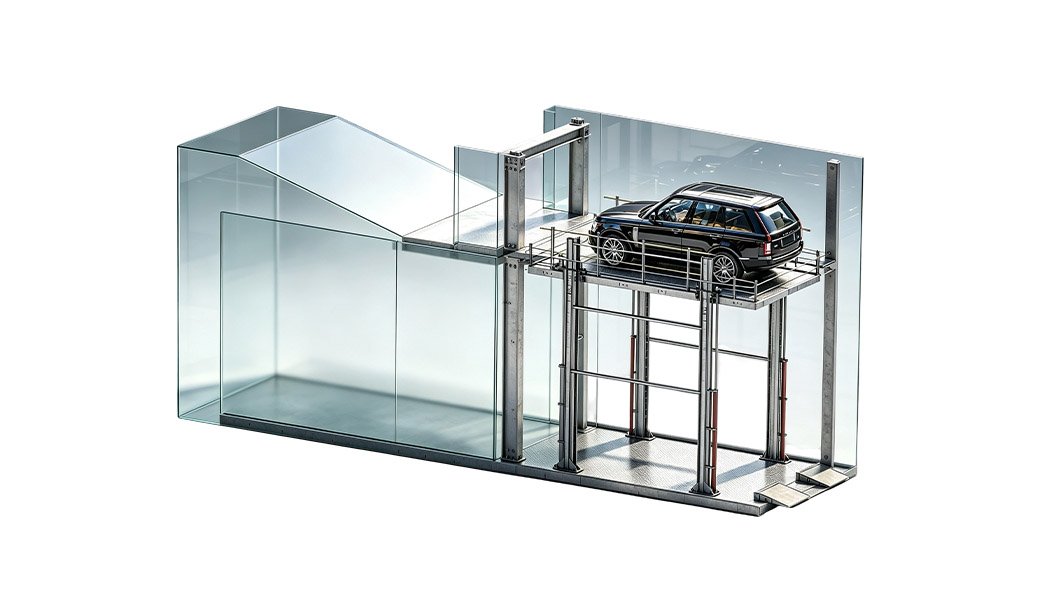

Scissor Car Elevating Platform
Features a remarkably slim runway design with a minimum height of just 155mm, significantly reducing pit depth and civil installation costs.
Multi-Floor Vehicle & Cargo Transport
Engineered as a heavy-duty vertical conveyor to seamlessly transport vehicles or bulky cargo between different building floors.
100% Fully Customizable Engineering
Fully tailorable in lifting height, load capacity, and platform dimensions to match your exact architectural requirements.
Double Chain & Hydraulic Cylinder Drive
Combines high-precision hydraulic cylinders with heavy-duty double chains for smooth lifting, effortless control, and minimal breakdown risk.
Quiet & High-Capacity Power Unit
Equipped with a large-capacity hydraulic power pack to deliver fast lifting speeds while keeping operational noise to a minimum.
Double Chain & Multi-Layer Safety Devices
Built with a redundant double-chain mechanism and multiple safety interlocks to guarantee absolute platform stability and fall prevention.
Adjustable Leveling System for Smooth Transit
Features precision adjustable bolts to fine-tune platform levelness, preventing bumps or jerks as vehicles drive on and off.
Heavy-Duty Diamond Steel Plate
Constructed with premium diamond-patterned steel plates that offer maximum grip, preventing tire slippage and withstanding extreme loads.
High-Precision Hydraulic System & Optional Remote Control
Engineered with high-precision hydraulic drive components for reliable continuous duty, with an optional remote control for maximum convenience.
Automobile 4S Dealerships & Showrooms
The ideal vertical car lift for moving new vehicles seamlessly between ground-level showrooms and upper-floor storage or service bays.
Multi-Story Commercial Garages & Basements
Replaces expensive concrete ramps in space-constrained parking garages to transfer vehicles efficiently across different underground/above-ground levels.
Industrial Warehouses & Logistics Hubs
Functions as a heavy-duty freight elevator to move heavy palletized goods, machinery, or service vehicles between factory floors.
Private Luxury Garages & Executive Residences
Provides high-end homeowners with a custom underground-to-ground car elevator to transport luxury vehicles into basement display rooms.
| Model | ELPK-FCEP2300 | ELPK-FCEP2700 |
| Size | 5000x1850x1550mm | 5000x1850x1550mm |
| Suitable Weight | ≤2300kg | ≤2700kg |
| Motor Power | 2.2kw | 2.2kw |
| Liffting Speed | 1.8m/min | 1.8m/min |
| Maximum Access Time | ≤45s | ≤45s |
| Power Parameters | AC 220V/380V,50Hz | AC 220V/380V,50Hz |
