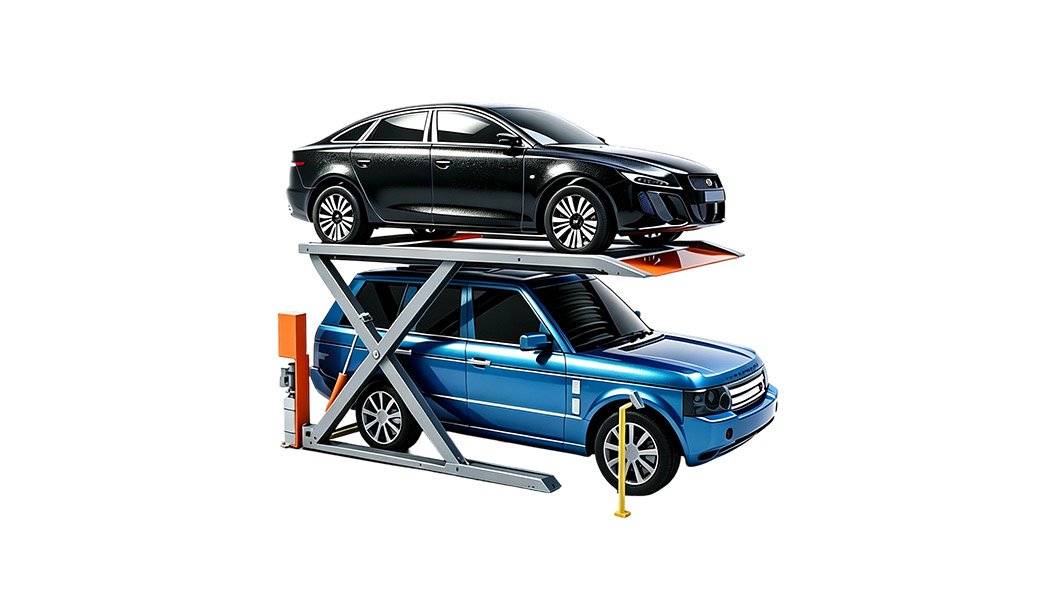

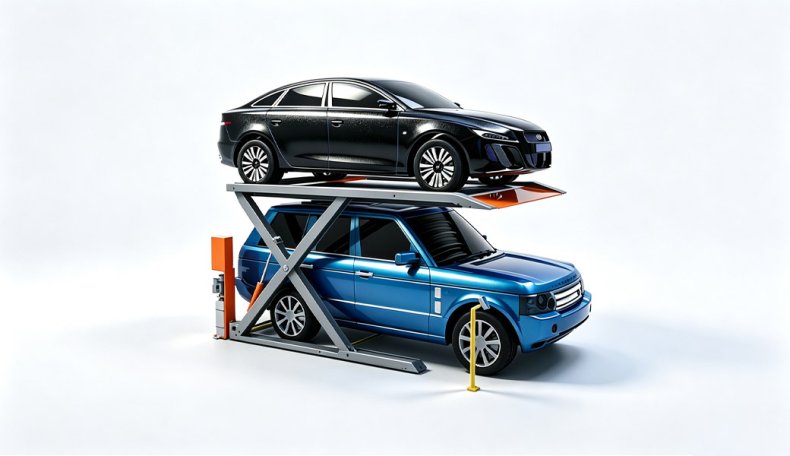

Double Cylinder 2 Post Car Lift
Features a space-saving N+1 column layout that doubles your parking capacity without expanding the ground footprint.
Ultra-Slim Folded Height
Folds down to a remarkably slim 280 mm profile, allowing vehicles and pedestrians to pass smoothly without blocking your garage.
Zero Pit & Easy Installation
Installs directly onto standard cement floors with zero pit excavation or expensive civil engineering costs.
Obstacle-Free Around the Lift
Designed with no side or front columns, offering completely unobstructed driving lines and maximum door-opening room.
Smooth Dual-Cylinder Drive
Equipped with main and auxiliary hydraulic balance cylinders for ultra-stable, low-noise lifting in just 45 seconds.
Full-Process Mechanical Locking Protection
Features a high-precision mechanical safety locking device throughout the lifting process, paired with push-button electric unlocking.
Smart Electrical Auto-Protection System
Built-in smart controller detects and automatically halts operation during undervoltage, phase loss, overcurrent, or overload conditions.

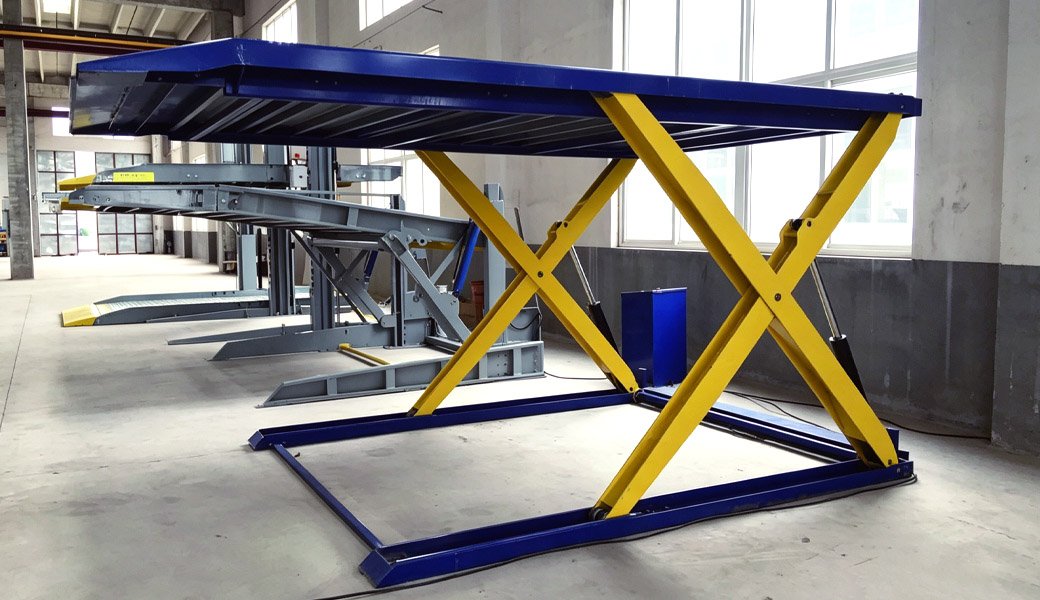

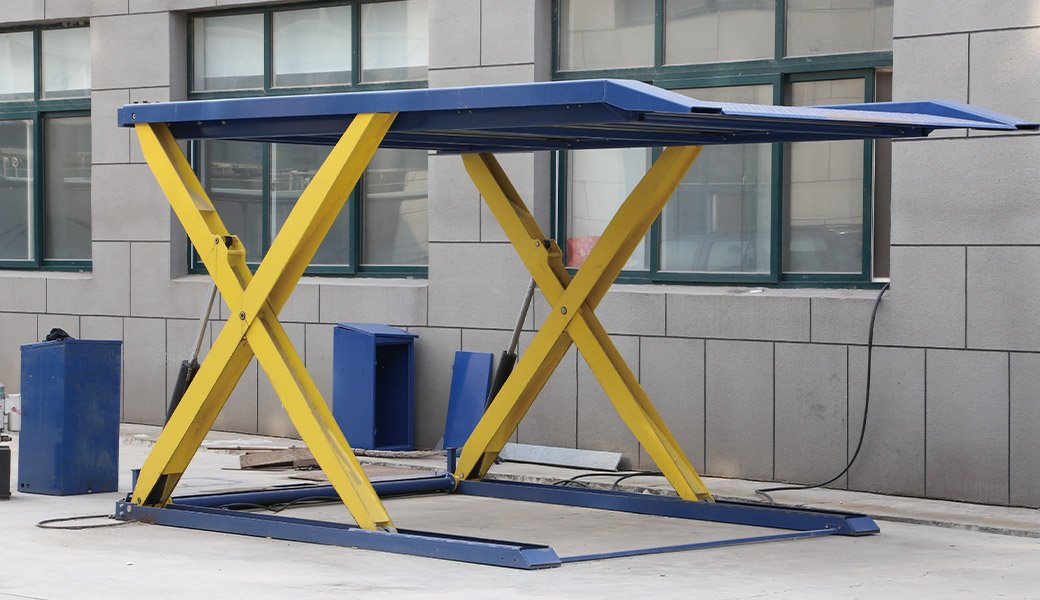

Heavy-Duty Scissor Linkage Structure
Crafted from high-tensile steel with precision scissor joints to provide long-lasting structural strength and exceptional load balance.
100,000 Cycle Endurance & Global Insurance
Validated through 100,000 rigorous fatigue tests and covered by global product liability insurance for complete long-term peace of mind.
Non-Excavation Private Garages & Villas
The ideal upgrade for home users who want to double their parking space without digging deep pits or modifying garage structures.
Auto Detailing Shops & Service Bays
Maximizes indoor vertical staging space without erect columns interfering with mechanics, detailers, or tool carts.
Restricted Surface & Courtyard Parking
Allows residential property owners to add double-deck parking in outdoor spaces where installing bulky post structures is prohibited.
Temporary Rented Venues & Flexible Commercial Spaces
Provides a mobile, easy-to-relocate parking solution for commercial spaces that may face future site replanning or lease moves.
![]()
![]()
| Model | ELPK-SPL2000S |
| Size | 4715x2501x2188mm |
| ( First floor:SUV ) | |
| Suitable Weight | ≤2000kg |
| Motor Power | 2.2kw |
| Liffting Speed | 3.2m/min |
| Maximum Access Time | 45s |
| Power Parameters | AC 220V/380V,50Hz |
| Lifting Height | 2000mm |
