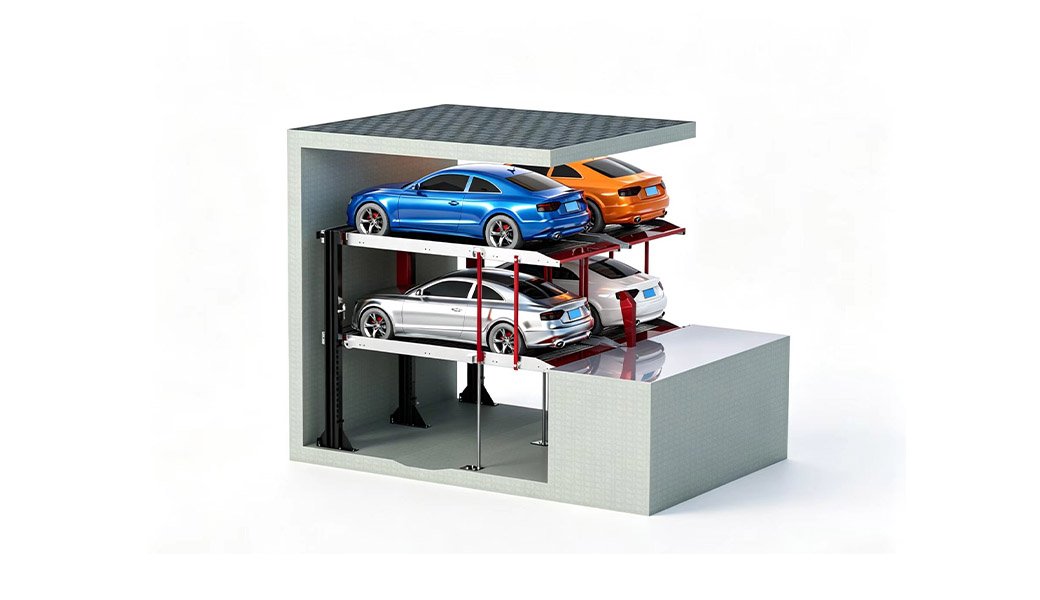

Single Space Pit Parking Lift
Utilizes an underground pit structure to double your parking spaces without creating bulky overhead obstacles or blocking architectural views.

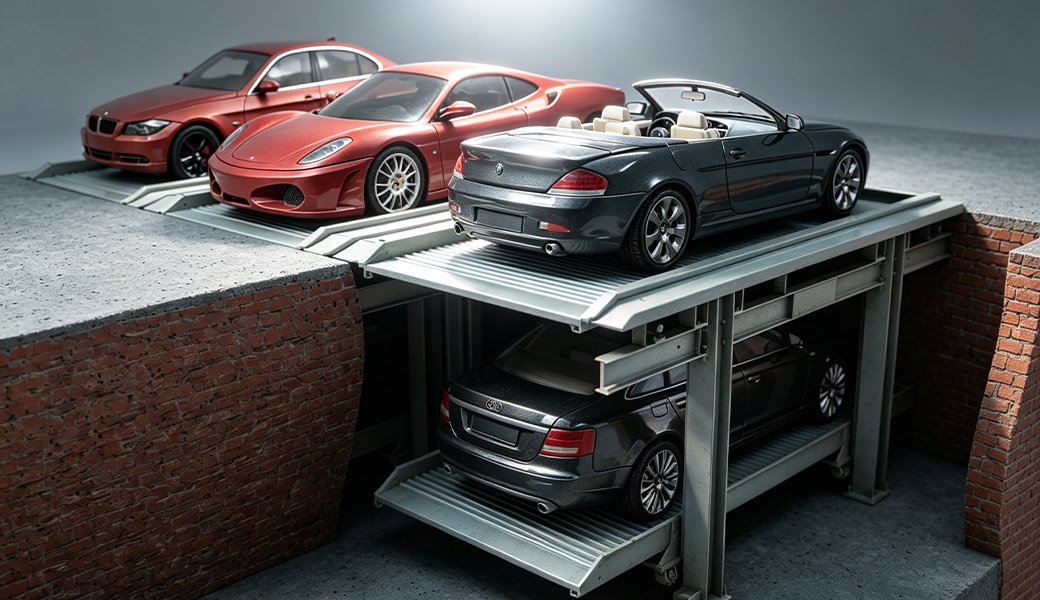

Subterranean Double Capacity
Utilizes an underground pit structure to double your parking spaces without creating bulky overhead obstacles or blocking architectural views.
Flush Surface Parking & Drive-Through
When fully lowered, the upper platform sits completely level with the ground, allowing cars to drive across or park naturally.
Dual Cylinder & Mechanical Synchronization
Driven by double hydraulic cylinders paired with a mechanical synchronous shaft, ensuring rock-solid stability and level movement.
Multi-Car Family & Commercial Double Stacking
Designed to accommodate multiple vehicles side-by-side on two levels, maximizing space efficiency for both private and commercial lots.
Full-Process Anti-Fall & Emergency Power-Off
Equipped with whole-process anti-falling locks and emergency power-off safety devices to prevent abnormal landing and cut power instantly if needed.
Smart Misentry & Height Limit Detection
Features safety detection devices for misentered personnel/vehicles and superelevation sensors that lock the system if an over-height vehicle loads.
Comprehensive Electrical & Low-Level Warning
Includes complete circuitry protection (undervoltage, phase loss, overload) and a position safety alarm that alerts when dropping to 500mm above ground.
Heavy-Duty Hydraulic Synchronous Drive
Built with high-precision hydraulic cylinders and high-rigidity guide frameworks for dynamic load balance, low wear, and long service life.
Private Villas & Luxury Residences
The ideal hidden parking solution for villa owners who want extra parking spots without erecting ugly steel towers in their yard.
Height-Restricted Urban Garages
Unlocks additional vertical capacity in underground basements where vertical ceiling clearance is too low for traditional two-post lifts.
Boutique Hotels & Commercial Courtyards
Allows commercial operators to add customer parking seamlessly while maintaining an open, obstacle-free ground environment.
Private Car Collectors & Multi-Vehicle Households
Offers a discrete and secure multi-car stacking system, allowing precious daily-drivers or collector cars to be stored safely underground.
![]()
| Model | ELPK-PPL2700S-SP |
| Size | 5000x1850x1550mm |
| Suitable Weight | ≤2500kg, 2700kg |
| Motor Power | Four stage motor,4kw |
| Rising speed | 50-65s |
| Descent speed | 35-45s |
| Power Parameters | 200-480V 3P 50/60Hz |
