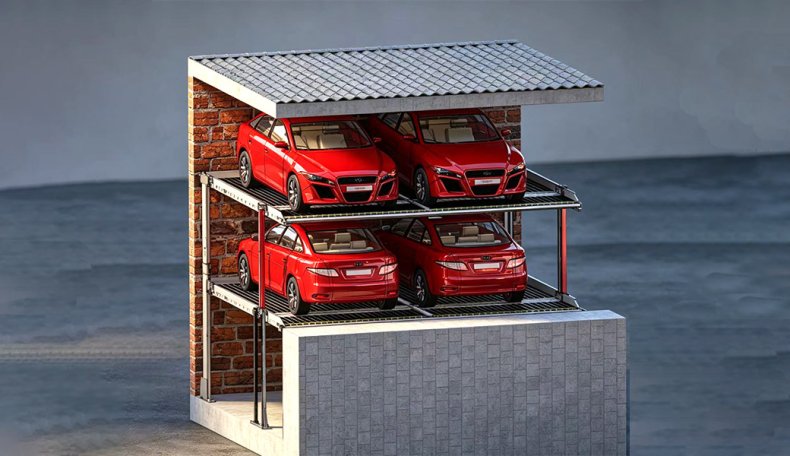

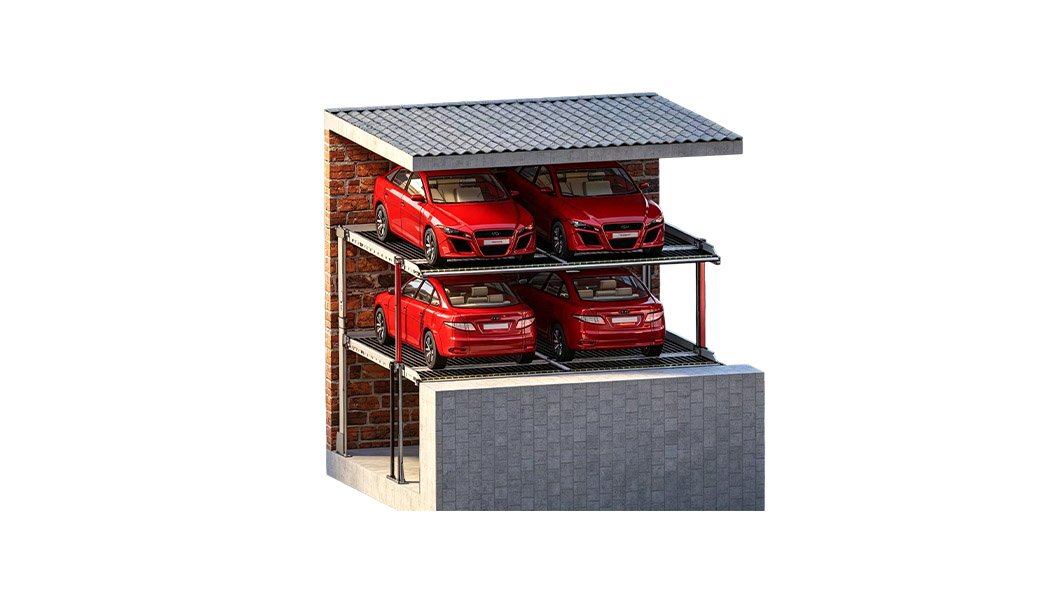

Single Space Pit Parking Lift
Utilizes an underground pit structure to double your parking spaces without creating bulky overhead obstacles or blocking architectural views.
4-Car Subterranean Capacity
Features an ultra-wide double-platform design that stores two cars in the underground pit and two cars on ground level simultaneously
Unobstructed Ground Integration
Lowers seamlessly into the pit so upper vehicles park level with the ground, maintaining open views and unobstructed space above.
Dual Cylinder & Mechanical Synchronization
Powered by twin hydraulic cylinders and a heavy-duty mechanical synchronous shaft to prevent platform tilting across wide spans.
Reinforced Rear-Post Cantilever Design
Built with robust rear columns and diagonal support braces to ensure high load stability while leaving the front entrance completely clear.
Whole-Process Anti-Fall & Emergency Power-Off
Equipped with whole-process mechanical fall-arrest devices and a quick-response emergency stop switch to eliminate any risk of platform dropping.
Smart Misentry & Vehicle Size Safety Detection
Features safety sensors to detect mised personnel/vehicles and an upper-plate superelevation alarm that halts operation if a vehicle is too tall.
Multi-Circuit Protection & 500mm Low-Level Warning
Integrates automatic protections for undervoltage, phase loss, and overload, plus a position safety alarm that alerts when lowering to 500mm above ground.
Heavy-Duty Structural Steel & Corrosion Resistance
Constructed with heavy-gauge steel profiles, rigid diagonal braces, and anti-corrosion coatings designed for high-frequency multi-car commercial use.
Luxury Villas & Multi-Car Households
The ultimate underground parking upgrade for families with 4 or more vehicles who refuse to ruin their garden landscaping with tall lifts.
High-End Residential & Townhouse Communities
Allows residential properties to create efficient 4-car stacked units in limited shared outdoor spaces without erecting steel structures.
Boutique Hotels & Commercial Courtyards
Provides a high-capacity hidden parking infrastructure for commercial guests, maintaining an open, elegant, and barrier-free courtyard.
Private Car Collectors & Executive Garages
Offers a secure underground environment to store valuable collector vehicles below while keeping daily drivers parked safely on top.
| Model | ELPK-PPL2700S-DP |
| Parking Spaces | 4 |
| Size | 5000x2050x1750mm |
| Suitable Weight | ≤2700kg |
| Motor Power | 5.5kw |
| Liffting Speed | 2.0m/min |
| Power Parameters | 380V/50Hz/3P |
