Why Choose a Scissor Car Lift Platform?

Transferring vehicles between multi-level showrooms, upper-floor service bays, or underground parking structures using traditional concrete driveways requires massive floor space, high construction overhead, and complex structural alterations.

The ELEVO PARKER Scissor Car Lift Platform resolves vertical spatial constraints and high civil engineering costs through four core structural innovations:

• Ultra-Low Profile Runway Design (155mm): Features an ultra-slim collapsed profile height of just $155\text{ mm}$, drastically reducing required pit excavation depth and civil installation costs.

• Heavy-Duty Scissor Linkage & Dual-Chain Power: Built with high-strength structural steel scissor arms and heavy-duty double pulling chains, delivering exceptional rigidity and high weight capacity for multi-level transfers.

• High-Precision & Low-Noise Hydraulics: Driven by a large-capacity hydraulic pump station equipped with an aluminum-shell air-cooled motor and internal cylinders, ensuring swift, smooth elevation with minimal noise.

• CE-Certified Multi-Layer Safety Architecture: Incorporates a 24V low-voltage human safety control system, hydraulic explosion-proof valves, and chain-break protection to prevent abnormal platform drops.

2. Working Principle

The ELEVO PARKER system utilizes an electro-hydraulic scissor linkage mechanism driven by a high-capacity air-cooled pump station:

Hydraulic Activation & Extension: Engaging the control box or remote activates the high-power aluminum-shell motor. Precision hydraulic oil flows into the built-in cylinders, forcing the scissor linkages to expand smoothly.

Synchronized Scissor Elevation: High-strength scissor arms scissor upward while pulling heavy-duty double chains, providing balanced vertical movement across multi-floor spans.

Mechanical & Hydraulic Locking: Built-in hydraulic pressure-loss explosion-proof valves lock fluid in place. During lowering, an automated pre-descent sound and light alarm triggers before the platform reaches ground level to prevent accidental injury.

3. Structural & Technical Comparison

Evaluating the ELEVO PARKER Scissor Car Lift Platform against conventional market alternatives highlights specific engineering and protective material advantages:

4. Technical Specifications

5. Safety Component Integration

The ELEVO PARKER Scissor Car Lift Platform incorporates comprehensive mechanical, electrical, and hydraulic protection mechanisms:

Chain-Break Protection & Anti-Fall Devices: Integrated mechanical safety catchers automatically engage to lock the platform if chain or cable tension is lost.

Hydraulic Pressure-Loss Explosion-Proof Valve: Direct-mounted safety valves block hydraulic line backflow instantly during pressure loss, preventing sudden platform drops.

24V Control Circuit & Emergency Power-Off: Operates under a 24V safety voltage to protect operators, supported by an immediate emergency stop switch on the control console.

Audio-Visual Pre-Descent Protection: Triggers automated light flashing and audible warning signals during final lowering stages to alert personnel away from pinch points.

Corrosion-Resistant Visual Oil Reservoir: Designed with an easy-observation oil tank that simplifies routine maintenance checks on fluid level and cleanliness to prolong system life.

6. Applications & Key Selling Points

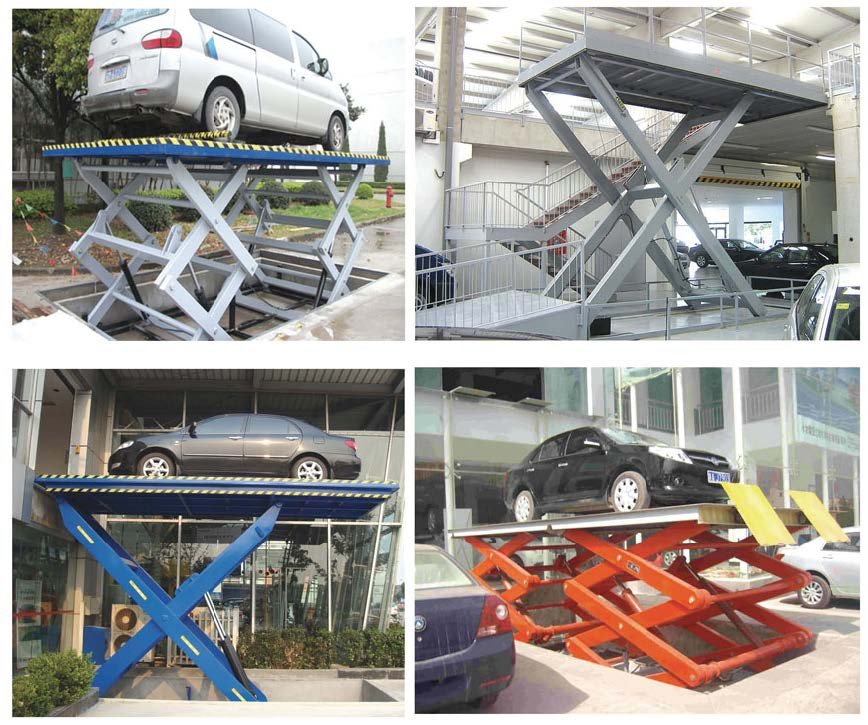

Target Application Scenarios

Automobile 4S Stores & Multi-Level Dealerships: Efficiently transfers inventory to second-floor showrooms or roof storage without building space-consuming concrete ramps.

Large Auto Repair Shops & Service Centers: Moves vehicles to upper-floor maintenance bays, increasing floor space utilization across multi-level workshops.

Three-Dimensional Parking & Commercial Buildings: Serves as a robust car elevator to move vehicles into underground or upper-level parking structures in dense urban areas.

Industrial Warehouses & Heavy Freight Transport: Functions as a heavy-duty industrial freight lift to transport machinery and heavy palletized materials across floors.

Key Selling Points

Ultra-Slim Profile for Lower Pit Costs: The 155mm minimum height dramatically reduces civil pit excavation depth and overall installation complexity.

High-Frequency Duty Cycle Reliability: Fan-cooled aluminum motors and heavy-duty double chains deliver continuous, smooth, low-noise multi-floor operation.

CE-Compliant Full-Spectrum Safety: Dual anti-fall protection, 24V safe control circuits, and pre-descent alarms guarantee zero-accident performance.

7. Summary

The ELEVO PARKER Scissor Car Lift Platform offers a robust, space-saving vertical transport solution for multi-level automotive and industrial facilities. Engineered with an ultra-low 155mm profile, heavy-duty scissor linkages, an air-cooled hydraulic power station, and CE-certified 24V safety controls, this Scissor Lift for Cars provides reliable, quiet, and efficient vertical vehicle elevation.

8. FAQ

Q: Why is the 155mm ultra-low profile height significant for scissor car lift installations?

A: The 155 mm profile height allows the platform to collapse exceptionally thin, requiring minimal pit excavation depth and significantly reducing civil construction costs.

Q: Can this scissor lift platform be used for heavy freight transportation in industrial warehouses?

A: Yes, the high-strength scissor linkage framework and heavy-duty double chain mechanism allow the system to double as a heavy-duty freight platform for industrial machinery and palletized cargo.

Q: What safety mechanisms prevent the platform from falling during hydraulic line failure?

A: The system incorporates direct-mounted hydraulic pressure-loss explosion-proof valves combined with physical chain-break safety catchers to securely hold the platform in place.
