Why Choose a Pit Two Post Parking Lift?

Expanding parking capacity in private villa courtyards, boutique hotels, and height-restricted underground basements often creates significant design challenges regarding vertical space, light obstruction, and structural footprints.

The ELEVO PARKER subterranean parking system resolves space restrictions through four core structural innovations:

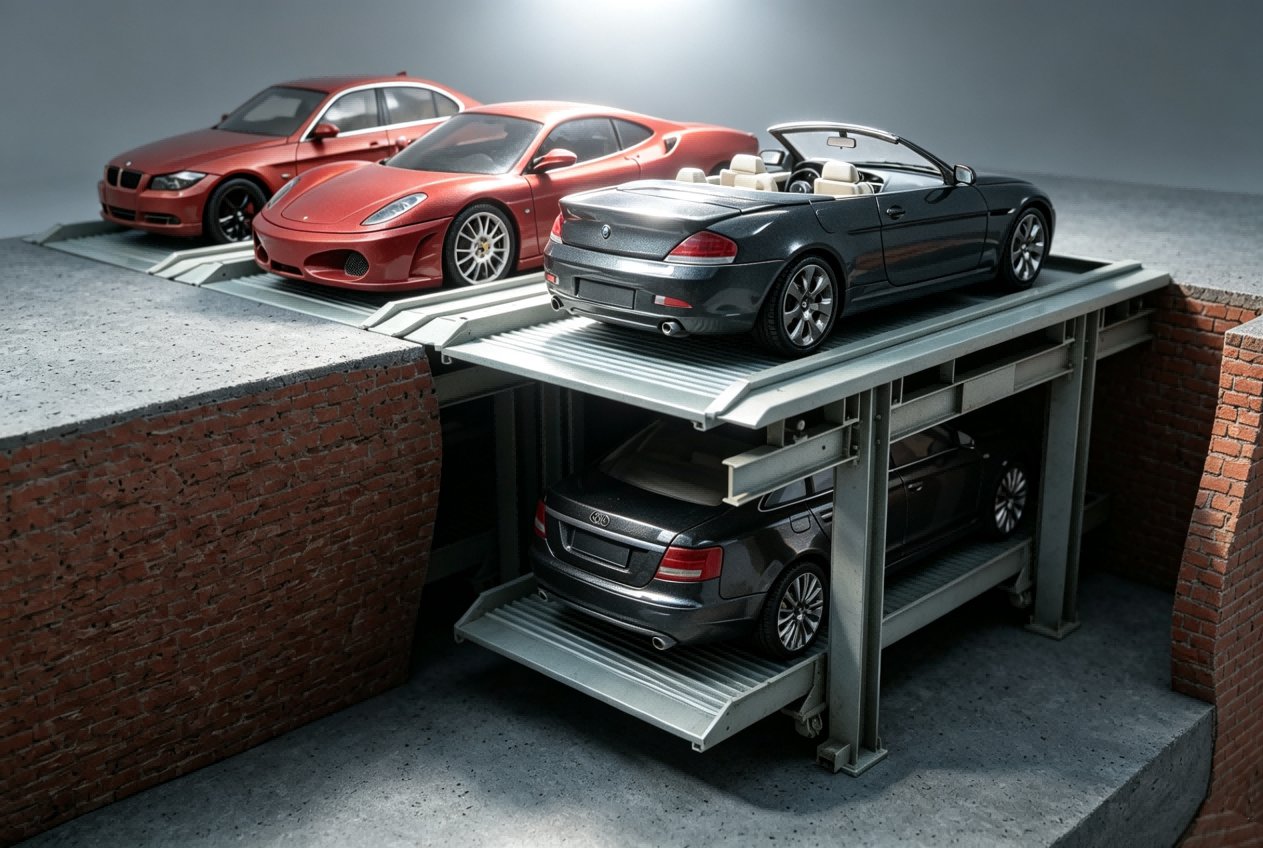

• Subterranean Hidden Double Stacking: Utilizes an underground pit structure to double vehicle capacity without increasing overhead building height or blocking architectural views and courtyard lighting.

• Flush Surface Parking & Drive-Through: When lowered completely, the upper cover plate sits flush with the surrounding ground, allowing vehicles to park naturally on top or drive across as an unobstructed driveway.

• Heavy-Duty Hydraulic & Mechanical Synchronization: Driven by dual high-precision hydraulic cylinders paired with a heavy-duty mechanical synchronous shaft, ensuring dynamic balance and preventing platform tilting under uneven loads.

• Obstacle-Free Rear-Post Architecture: Features reinforced rear columns combined with diagonal strengthening supports, leaving the front completely clear for effortless driving access.

2. Working Principle

The ELEVO PARKER system utilizes an electro-hydraulic mechanism driven by dual hydraulic cylinders and mechanical shaft synchronization:

Hydraulic Pressurization & Signal Activation: Engaging the key switch or remote control activates the 5.5 kW motor power unit. Hydraulic fluid forces the dual hydraulic cylinders to extend uniformly.

Dual-Cylinder & Mechanical Shaft Synchronization: Dual hydraulic cylinders exert balanced force across the lift frame, guided by high-precision side rails and a heavy-duty mechanical synchronous shaft to maintain level platform movement at 2.0 m/min.

Mechanical Interlocking & Safety Descent: Quenched alloy anti-fall mechanical locks continuously track platform motion. During descent, an integrated photoelectric sensor triggers a brief safety pause at 500 mm above ground level to prevent accidental injury before complete lowering.

3. Structural & Technical Comparison

Evaluating the ELEVO PARKER Pit Two Post Parking Lift against conventional market alternatives highlights specific engineering and material upgrades:

4. Technical Specifications

5. Safety Component Integration

The ELEVO PARKER Pit Two Post Parking Lift incorporates full mechanical, electrical, and physical safety mechanisms:

Full-Process Anti-Fall Mechanical Locks: Combines high-hardness quenched alloy lock blocks with electromagnetic release solenoids. The locks continuously track ascent and descent, keeping the platform securely locked even if hydraulic pressure drops unexpectedly.

Smart Misentry & Height Limit Detection: Features integrated photoelectric sensors to detect misentered personnel or vehicles. An overhead height-limit sensor automatically locks system operation if an oversized vehicle is loaded.

500 mm Low-Level Warning & Foot Protection: Electrical circuitry incorporates undervoltage, phase loss, and overload protection. When lowering reaches 500 mm ground clearance, an audible and visual alarm halts movement temporarily to prevent foot injuries.

Wheel Positioning & Front Buffer Bars: Equipped with rigid anti-collision buffer bars and tire positioning plates to guide drivers into precise alignment inside the pit frame.

6. Applications & Key Selling Points

Target Application Scenarios

Private Villas & Luxury Residences: Hides vehicles underground inside private courtyards, maintaining open garden views while adding multi-car parking space.

Height-Restricted Urban Garages: Maximizes vertical capacity in underground basements where vertical ceiling clearance is too low for above-ground two-post lifts.

Boutique Hotels & Commercial Courtyards: Allows commercial properties to expand customer parking discreetly without erecting visible steel structures on the ground level.

Private Car Collectors & Multi-Vehicle Households: Provides secure subterranean storage for luxury or collector vehicles on the lower tier while keeping daily vehicles on the top level.

Key Selling Points

Discreet Space Optimization: Subterranean structure keeps upper parking completely flush with ground level, leaving architectural views entirely unobstructed.

Millimeter-Level Synchronized Drive: Dual cylinders combined with a mechanical synchronous shaft ensure level lifting and lowering without platform binding or tilting.

7. Summary

The ELEVO PARKER Pit Two Post Parking Lift provides a high-capacity, space-saving solution for subterranean vehicle stacking across residential and commercial properties. Engineered with dual hydraulic dynamic drive, mechanical shaft synchronization, and full-process anti-fall protection, this Subterranean Car Lift delivers hidden parking expansion while maintaining clean ground aesthetics.

8. FAQ

Q: Why is a Pit Two Post Parking Lift ideal for height-restricted basements and private villas?

A: It utilizes pit excavation to store lower vehicles underground while keeping upper platforms level with the floor, doubling vehicle storage without requiring high ceiling clearances or disrupting outdoor courtyard views.

Q: How does the system prevent platform tilting during uneven vehicle loading?

A: The lift integrates a heavy-duty mechanical synchronous shaft paired with dual hydraulic cylinders, enforcing dynamic balance across both sides of the platform during ascent and descent.

Q: What safety mechanisms prevent accidental foot injuries when the upper deck lowers flush to the ground?

A: The system incorporates a safety warning feature that automatically pauses descent at a 500 mm ground clearance height, triggering audio-visual alerts to ensure the area is clear before completing final lowering.
